The proof is in guns that shoot . Why is it that some people can consistently build rifles that out perform those of the competition? It's no accident. It comes from hard work, experience and a desire to achieve unparalleled perfection. The goal is simple ,build rifles that are capable of extreme accuracy. Whether the temperature is a scorching 105 or a cold to the bone -40. Dry desert or tropical rain forest. This can only be achieved with the highest quality materials the best equipment and the best people.
Each situation is different in its needs and goals. That's why we build a variety of different guns all specially built to do the job as only the right tool can. Keeping these needs in mind along with the newest of benchrest technology is how we build each gun. From the Light Weight Packer to the Heavy Bench. The Deluxe Safari to the Police Sniper, or maybe the Practical Sporter best fits the need. WE BUILD ACCURACY!!
Our Products
Our Services
Miscellaneous
Score High Gunsmithing is your one stop shop for Hornady's new 6.5 Creedmoor. Since its introduction by Hornady we have been building Rifles chambered for this amazing new round of ammunition. The first 6.5 Creedmoor rifle we built was for Hornady's sponsored shooter, Charles "Tate" Moots. Tate's rifle and virtually every rifle since his has delivered 1/4 to 3/8 MOA accuracy with factory ammunition. After seeing the performance of Tate's rifle I had to have one for myself. My rifle pictured below was built on a Remington 700 action in a McMillan A-5 stock. It has a 26" Brux barrel fitted with our Tactical Bolt muzzle brake. I personally have not used the 120 A-Max ammo but the 140 A-Max gives me 2775 fps and I have fired several 1/4 MOA groups.
The 6.5 Creedmoor delivers world-class long-range performance in a factory loaded cartridge.
sharper 30° shoulder and aggressive body taper allow the 6.5 Creedmoor to
deliver higher velocities than other 6mm and 6.5mm cartridges. and yet it
operates at standard 308 Winchester pressures, thus increasing barrel and case
life. Coupled with these velocities and these bullets, Hornady has developed a
round that is flat shooting, wind defying and extremely accurate. The 6.5
Creedmoor is the ultimate match cartridge.
Call us for pricing on Ammo, Brass, dies and Complete rifles
Level 1, The level 1 service entails improving upon almost every aspect of your rifle short of re-machining the barrel and receiver. This service make the most dramatic change and usually enables your rifle to shoot sub MOA Groups. Because of the different stock bedding techniques the level 1 service is broken down in to level 1a and 1b
Level 1a, $265.00
For Rifles with an aluminum stock bedding block such as
Sendero or H-S Precision.1. Barrel diagnostic.
2. epoxy bed the aluminum bedding block and float barrel
3. Re-crown the barrel with an 11 degree counter-bore style crown.
4. Trigger tune.
5. Line bore Rings and bases and mount scope.
6. Lap bolt LugsLevel 1b, $315.00
For Rifles with wood or synthetic stocks that can be aluminum pillar bedded.1. Barrel diagnostic
2. epoxy bed stock with aluminum pillars and float barrel
3. Re-crown the barrel with an 11 degree counter-bore style crown.
4. Trigger tune.
5. Line bore Rings and bases and mount scope.
6. Lap bolt Lugs
Level 2 Gives you that last bit of accuracy that can only be achieved with a match quality chamber and a perfect receiver barrel fit. The level 2 many times raises your rifle’s accuracy to that of a full blown custom rifle depending on barrel quality.
Level 2a $635
1. Everything in Level 1a
2. Blue print receiver
3. Remove original barrel thread extension. Rethread barrel to precisely fit receiver.
4. Re-cut chamber to match quality and polish.Level 2b $685
1. Everything in Level 1b
2. Blue print receiver
3. Remove original barrel thread extension. Rethread barrel to precisely fit receiver.
4. Re-cut chamber to match quality and polish.
Options
1. Drill and re-tap Scope base holes to 8x40 for better alignment and more strength.
2. Tactical Bolt handle
Badger knob
Holland’s
ECT
Taylor
3. Leupold Dual Dove tail Rings and bases
4. Badger 20 Minutes tapered rings and bases.
One piece
Two piece
5. H-S Precision PST-25/26 stock vertical grip with adjustable Length of pull and adjustable comb.
6. H-S Precision PST03C stock vertical grip with adjustable Length of pull and adjustable comb.
Depending on your needs we offer 2 levels of accurizing services to Remington 700 rifles. All Remington 700s fall into one of two categories light/sporter or heavy/target. The light/sporter models are confined to only level 1 (unless the barrel is replaced). Because the taper of the light/sporter barrel starts immediately at the recoil lug and tapers quickly to a sporter weight there is not enough barrel material to remove all of the original threads and cut new ones. The heavy/target models such as, but not limited to, the Sendero, VLS, VSF, or BDL Varmint are suited to both levels of our accurizing services.
The ultimate epoxy bedding compound!
Epoxy or glass bedding has been popular for many years as a tool for accurizing rifles of all types. Accuracy depends on shot-to-shot consistency. A great deal of a rifle’s ability to achieve this consistency is dictated by the relationship of the metal and the stock. During the firing process, a great deal of recoil or kick is created which tends to shift the barrel and action in the stock. This change dramatically affects the rifles ability to achieve shot-to-shot repeatability. In order to achieve extreme accuracy, we need to go beyond just good fit. We need to manage vibration cycles. In nature, all things vibrate and in order for a rifle to achieve extreme repeatability we must minimize the vibration cycles and make them as consistent as possible. Once again we are back to the stock to metal fit. Pro-Bed 2000 epoxy is the best tool available to meet that requirement. There has been a number of epoxy products used by the gunsmithing fraternity over the years and almost all of them were not designed for the sole purpose of accurizing rifles. Pro-Bed 2000 was formulated by a gunsmith with over 20 years of professional experience in epoxy bedding rifles. Pro-Bed 2000 directly addresses every problem unique to epoxy bedding.
|
|
4oz Kit-$16.95 |
| 8oz Kit-$25.50 | |
| 16oz Kit-$37.95 |
|
KITS AVAILABLE IN |
|
|
BLACK |
BROWN |
Anyone can get professional results using Pro-Bed 2000.
Ease of mixing: A non-critical mix ratio of 1:1 by volume, insures that Pro-Bed 2000 always attains full cure.
Overnight cure: Pro-Bed 2000 attains full cure in approximately 16 hours but still gives its user plenty of work time (approximately 60 to 90 minutes, depending on room temperature.)
Flowability: Pro-Bed 2000 has the perfect consistency. It will flow into all voids of the stock but it still stays where you put it.
Strength: Pro-Bed 2000 uses the highest quality components such as carbon fiber and high compressive strength microscopic spheres that give the cured epoxy greater flexural and compressive strength, while completely eliminating the shrinkage problems. There are no cheap fillers or extenders.
Carvability: Pro-Bed 2000 is not brittle. The cured epoxy can easily be carved, ground or machined without softening or chipping even in very thin sections.
Appearance: The unique characteristics of Pro-Bed 2000 will make it easy to produce a finished product to be proud of, free of voids and surface imperfections for both the professional gunsmith and novice alike.
Clean up: All Pro-Bed 2000 kits come with a generous amount of an extremely high quality mold release agent that is both easy to apply and easy to clean off while giving you the best possible surface finish and debonding characteristics.
Click Here to view a in depth presentation using the Score High Adjustable Pillar bedding System.
Click here to see installation Instructions
ACCURACY. Everybody wants good accuracy, from the twice a year hunter to the competitive bench rest shooter. A properly bedded rifle will do more for accuracy than any other single investment. The SCORE HIGH BENCH REST PILLARS enable you to do just that, and do it easier than any other pillar system on the market. This item is a must for anyone who requires the most in accuracy from their rifle. Gunsmiths and shooters alike will appreciate easy installment and the solid, non flexing, action to stock fit. The pillars match the contour of the action (Radius for Remington or Flat for Winchester 70) for the best in a stress free fit. The pillars mount directly to the action to maintain perfect alignment. No marking, cutting, filing or machining. The pillars are adjustable for proper action to trigger guard spacing. Because they are attached to the receiver they will not rotate during bedding (a gunsmith's pet peeve) as with other current pillar systems. Three kits enable you to choose what is right for you:
Click Here to view a in depth presentation using the Score High Adjustable Pillar bedding System.
The pricing is the same for Remington, Winchester
or
Howa 1500 / Weatherby Vanguard kits
Deluxe Kit: $55.95 This kit comes with everything needed to to properly pillar bed a rifle, Adjustable pillars, reusable installation hardware, Black or Brown, Pro-Bed 2000 bedding epoxy mold release wax modeling clay and an installation guide on CD-ROM.
Gunsmith Kit: $44.95 This kit comes with Adjustable pillars and reusable installation hardware and an installation guide on CD-ROM
Refill Kit: $22.95 If you have purchased one of the other kits this is all you need. Includes pillars only.
Epoxy and Pillar Bedding Supplies
Pillar Drilling jig for Remington 700
For Purchase or Rental
$239.95 for the complete set for 700 LA, SA ADL and BDL.
$134.95 for specific models such as 700 ADL short action
$48.00 for 5 day rental
It has never been easier to drill a Remington 700 stock to accommodate bedding pillars than with our Pillar Drilling Jig. You no longer need a milling machine or even a drill press. Hardened steel drill guide bushings are held in place by a round bar the same diameter as a Remington 700 receiver. This bar is accurately positioned on the top of the stock’s inletting using a special guide pin that pilots off of either the front or rear trigger guard screw hole. The top bar with the drill bushings are held firmly in position by a screw passing thru the top bar and into a special platform machined to fit the bottom of the stock. Once the drill jig is firmly in position the hardened drill bushing will not allow the special drill bit supplied with each kit to wonder from the correct path. It takes literally seconds to accurately drill any Remington 700 stock to accept bedding pillars using only a hand drill.
Click here to view a 12.5 Megabyte Video of the stock drilling jig in action

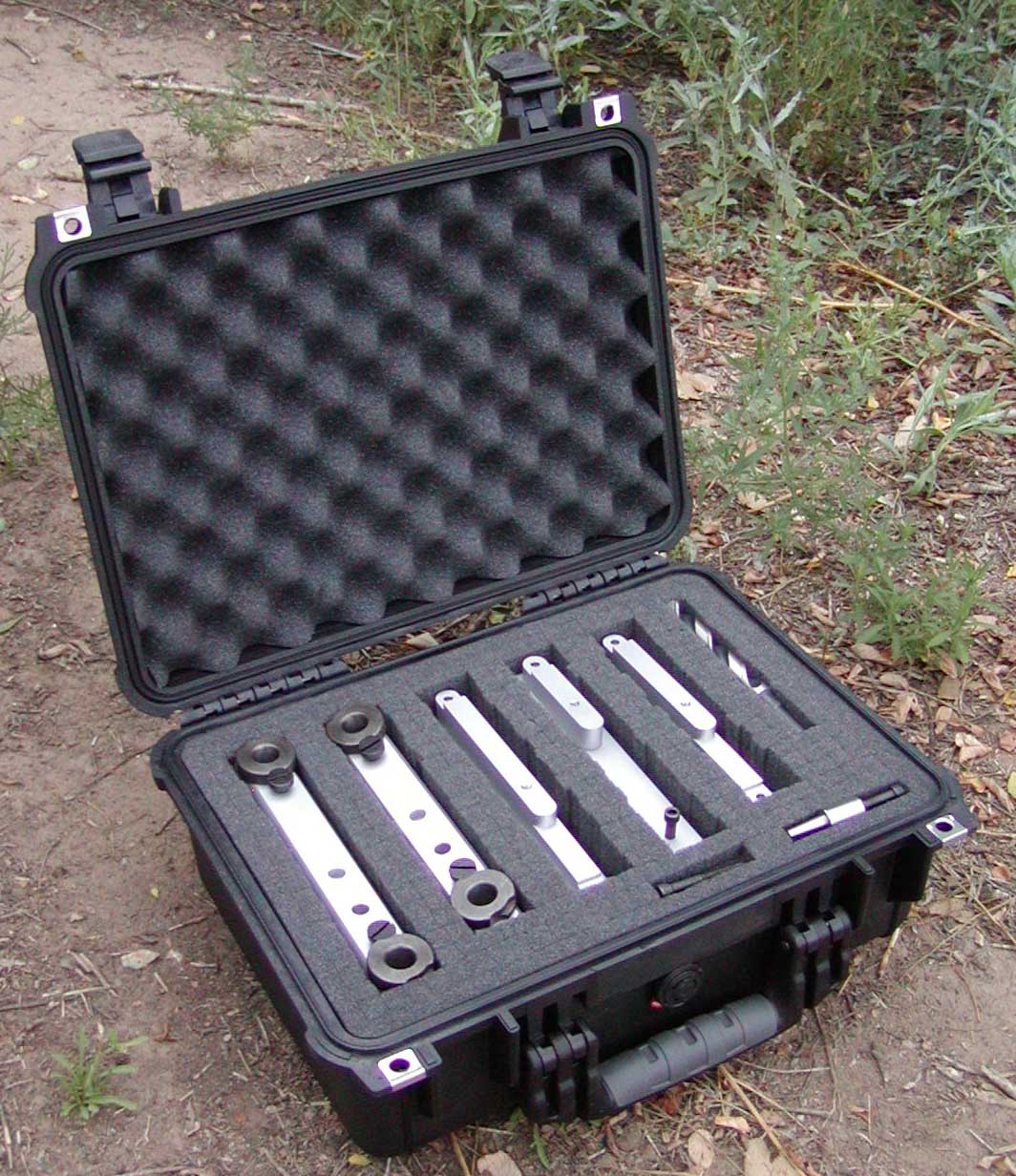

Drill Jig Rental
What you are Renting.
Drill jig rentals are for 5 full business days. The cost is $48 plus our standard $9.00 shipping and handling per order. Each stock drilling jig rented ships with every thing need to drill all Remington 700s or any Remington 40X, long action, short action, ADL and BDL. It also ships with a freshly sharpened premium twist drill ground specifically for use with the drill jig. The drill jig ships in a Pelican hard case with a special compartment for each drill jig component. Also shipping with the drill jig is a pre-paid UPS shipping label for return shipping.
How the Rental works.
Using your Visa or MasterCard you can request a drill jig rental ether on line or by phone. At that time a hold on funds for $319.95 will be placed on your credit card for the value of the drill jig ($239.95) and the Pelican case ($80.00). You will receive an e-mail from UPS with your tracking number when the drill jig ships. When you receive the package containing the drill jig we will receive an e-mail from UPS. The five day rental starts the next full day. When you are finished with the drill jig simply affix the label provided and present it to any UPS shipper or UPS driver. At that time UPS will enter the package into their tracking system and we will receive an email indicating the day and date of the return. There will be an additional $7.50 per day added to the original rental price for each day after 5 business days. Once we receive the drill jig back and it is examined to see if it is complete and in good condition your credit card will be charged for the rental charge and the funds on hold will be released.
Click here for Questions and answers on Drill jig rentals
Piloted counter
bores:
$57.95
|
When boring the stock
to accept the aluminum pillars it is easy to get good results every time
when using a piloted counterbore. There are 2 sizes available 9/16
diameter for boring the stocks of Winchesters and Howas and 5/8 diameter for
all Remingtons. To best fit the holes of the trigger guard screws each
counterbore comes with 2 pilots, 9/32 and 5/16 diameters. |
FUMED SILICA
|
The best method of thickening epoxy by far is through the use of Fumed Silica. There are times when bedding a stock that you need the epoxy to stay exactly where you put it. Fumed silica can be added to Pro-Bed 2000 to such an extent to make the epoxy as thick as dough with absolutely no negative effects on the finished product. The thixotropic properties of the Fumed Silica allow for ease of mixing with the epoxy. |
Easily Convert your bolt action rifle to a single shot with the Score High Benchrest Follower. No more scratched cases, no more battered bullet noses, No more fumbling around trying to load your bolt action rifle one round at a time. You simply insert the Score High Benchrest Follower in your magazine on top of the factory follower and spring. There it serves as a tray that positions the cartridge directly in line with the chamber for smooth, trouble free loading. This item is a must for any serious target, varmint or silhouette shooter, or for any body who requires the utmost accuracy from their rifle.
No gunsmithing required. These followers are designed and engineered to fit one specific bolt action rifle. Over 21 models available. All are machined from 6061-t6 aluminum.
FOLLOWER MODEL APPLICABILITY
We are proud to have our products available from the following distributors
IN THE USA
Brownell's distributes our: Benchrest Followers and Stock drilling jigs
Midway USA distributes our: Benchrest Followers, Adjustable Pillar
Bedding Kits and Pro-Bed 2000 bedding epoxy
Sinclair distributes our Benchrest Followers and
Adjustable Pillar Bedding Kits.
Kinneman's Custom Products distributes our: Benchrest Followers, Adjustable
Pillar Bedding Kits and
Pro-Bed 2000 Bedding epoxy
Lock Stock and Barrel distributes our: Benchrest Followers, Adjustable
Pillar Bedding Kits and
Pro-Bed 2000 Bedding epoxy
Russ Haydon's distributes our Benchrest Followers
Graf and Sons distributes our Benchrest followers
Muzzleloader Builders supply Distributes Pro-Bed 2000
Accurate Action distributes all of products in Canada
IN GERMANY
Heinz Henke distributes our Benchrest Followers
The Hunter $139.00 Installed
Our most popular brake
Eliminate 60% to 80% of your rifle's recoil by using it's expanding gases to brake the rearward movement of almost any center fire rifle. Kick is produced in two different ways referred to as PRIMARY and SECONDARY recoil. The powder in your cartridge when ignited, expands violently, pushing the bullet through and out your barrel, but for every action there is an equal and opposite reaction, this is primary recoil. Unfortunately this is something we must all learn to live with because there is nothing we can do to reduce it or eliminate it. Fortunately this makes up for only a small percentage of your rifles kick. Secondary recoil is the big problem. This is the recoil created when those gases escape the end of your barrel and propel your rifle like a rocket into your shoulder. Fortunately this can be dealt with by using a muzzle brake. When the bullet leaves the end of the barrel and passes through the break, the back of the bullet acts like a valve and the gases are released at right angles to the barrel canceling each other out and eliminating the gas induced, or secondary recoil. The SCORE HIGH MUZZLE BRAKE has a row of ports on top to eliminate muzzle rise and no ports on the bottom so as not to raise dust off the ground or create shock waves off the ground.
|
Recoil Comparison Chart Felt Recoil before and after brake Installation |
|
|
Caliber rifle ® |
Felt Recoil with brake. |
|
458 Win Mag ® |
338 Win Mag |
|
375 H&H Mag ® |
30-06 Sprg |
|
338 Rem Ultra Mag ® |
270 Win |
|
338 Win Mag® |
270 Win |
|
300 Rem Ultra Mag ® |
25-06 |
|
300 Weatherby Mag ® |
243 Win |
|
300 Win Mag ® |
243 Win |
|
30-06 Sprg ® |
243 Win |
|
7mm Rem Mag ® |
243 Win |
|
270 Win ® |
22-250 Rem |
|
25-06 ® |
223 Rem |
|
22-250 Rem ® |
17 Rem |
*NOTE*
Noise level is increased by Approximately 25 %. Always wear quality hearing
protection!
Click here to see how to ship us your rifle.
All rifles are not the same. They vary in design according to their application. Just as using truck tires on a sports car gives poor handling so does using a hunting rifle style muzzle brake on an AR (automatic rifle) style rifle. In order for each type of rifle to achieve the best possible performance we have found it necessary to make the Score High Muzzle Brake in 3 different styles, The Hunter, The Tactical Bolt and The AR Brake.
The expanding gas that creates recoil always forces the rifle backwards on the center line of the bore.
On a hunting rifle the center of support or the center of the butt plate is significantly below the center of the bore and the greater that difference the more the muzzle of the rifle will rise when fired. The Hunter style Score High Muzzle Brake has four ports on each side, no ports on the bottom, and four smaller ports on top. The escaping gases from the top ports hold the rifle’s muzzle down, offering the shooter the greatest control over the rifle.
Tactical bolt action rifles or rifles primarily fired from a bipod have a different need. The downward thrust from the 4 top ports exerts pressure on the bipod causing a slight bounce during recoil. The Tactical Bolt style Score High Muzzle Brake, with the top of the brake limited to 2 ports, perfectly balances the muzzle rise with the downward thrust for the best bipod optimizing shooting performance.
Because AR (Automatic Rifle) style rifles are supported so close to the center of the bore top ports actually drive the muzzle down robbing the shooter of total control. The AR Brake style Score High Muzzle Brake has no ports on top or the bottom, it only has 4 large ports on each side, giving total control with both automatic and semi-automatic fire.
The
Hunter $139. Installed
The Hunter, $139 installed. This requires a gunsmith installation and includes threading and re-crowning the muzzle, custom fitting and finishing of the brake to match the current finish on the rifle. Available in stainless or blued.
The Tactical Bolt, $179.00 installed. This requires a gunsmith installation and includes threading and re-crowning the muzzle, custom fitting and finishing of the brake to match the current finish on the rifle. Available in stainless or blued.
 |
|
|
AR-15 |
FN-240 |
The AR Brake, $90.00. Each AR Brake comes with a timing nut and is available in 3 sizes that fit factory threaded barrels: Available in gray parkerized finish. No gunsmithing required on factory threaded barrels.
AR-15 .750”: O.D. ½ X 28 TPI
AR-10 .875” O.D. 5/8 X 24 TPI

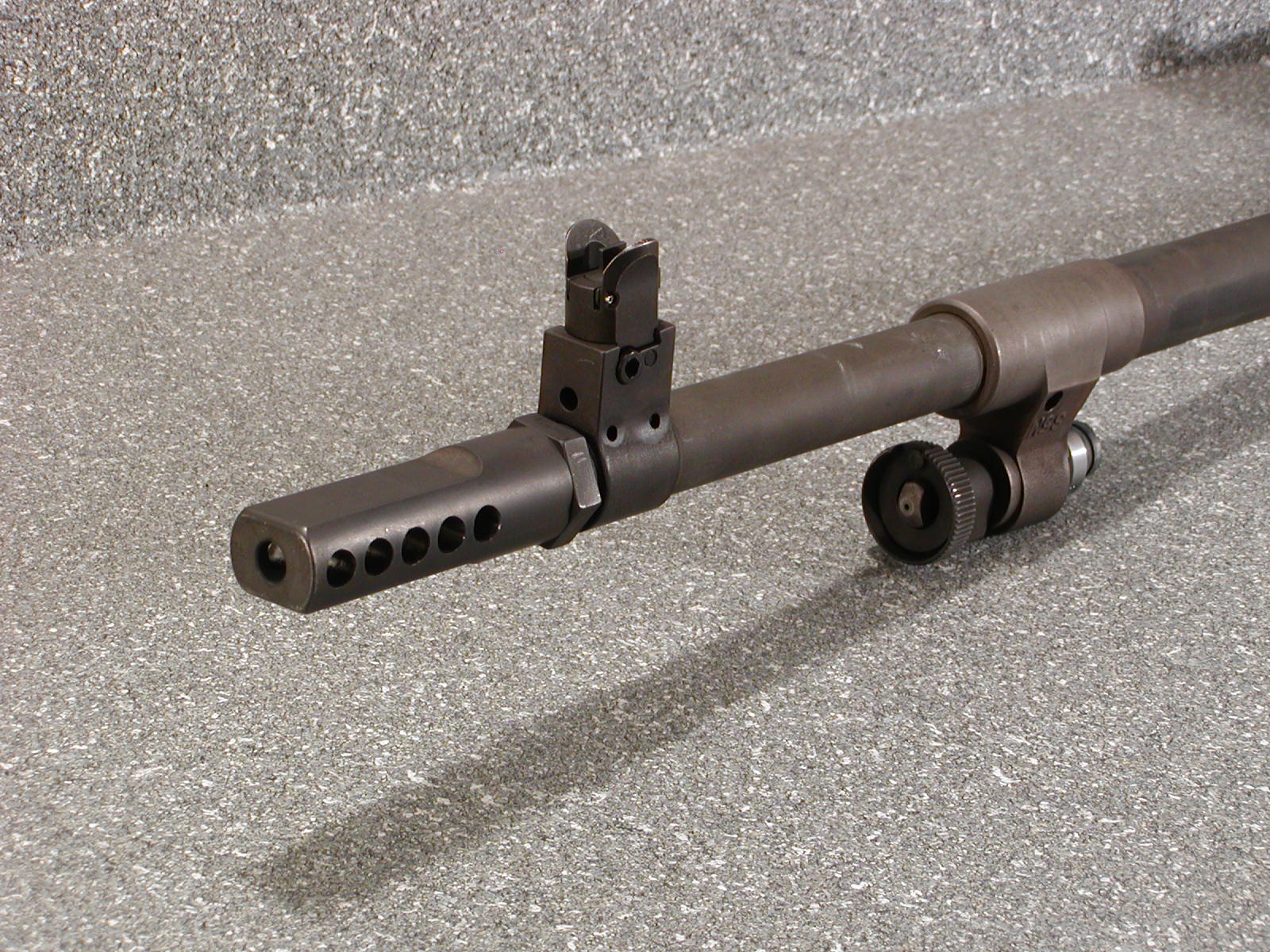

AR-FN240 1.00” O.D .577” X 24 TPI to fit the FN-240 Rifle
We can thread barrels that are not factory threaded, please call for pricing.
Click On the above image to view a large downloadable graphic.
The Score High Practical Sporter Rifle comes standard with a Blue printed Remington 700 action, to insure the best possible performance. This rifle comes standard, fitted with a number 4 contour Shilen Chrome-moly Match barrel and aluminum pillar bedded, McMillan Remington Sporter Style Stock with a Pachmayer decelerator recoil pad. The metal is gray parkerized for a maintenance free non-glare finish.
SPECIFICATIONS
Weight ........................................................ 7 Pounds without scope
Barrel Length .................................................................... 24 Inches
Length of pull ................................................................ 13.5 Inches
Color of Stock ........................................................ Black Textured
Rings and Bases.............................................. Leupold Dual Dovetail
Trigger Pull ................................................... 3.5 Pounds Adjustable
Standard package less scope $2315.00. The following options and accessories are available by adding these prices to the standard package price.
Any standard color ................................................................... N/C
Blued instead of parkerized......................................................... N/C
Any standard or magnum cal. (Most Ack Imp versions available) ..N/C
Custom length of pull ................................................................. N/C
Custom barrel length up to 26 inches .......................................... N/C
Score High Muzzle Brake ..................................................... $139.00
Thread protector for use without muzzle brake ...................$15.00
Shilen Match Barrel stainless ............................................... $80.00
Shilen Select Match Barrel stainless ..................................... $130.00
Walnut Classic Style Stock checkered with shadow line cheek piece, no Monte Carlo........................................................................... $640.00 (pictured Above)
Walnut Sporter Stock with Monte Carlo and cheek piece and checkered................................................................................... $640.00
McMillan Remington Classic Style Stock .................................... N/C
McMillan Remington Mountain Rifle Stock ................................. N/C
McMillan Remington BDL Stock ................................................ N/C
Jewell trigger with safety and bolt release ................................$200.00
Titanium Firing Pin with heavy spring ...................................... $70.85
Flute barrel of choice ........................................................... $250.00
3-Position Safety (Winchester mod 70 style) ......................... $230.00
Sako Style Extractor ............................................................ $175.00
Williams iron sites installed .................................................$120.00
Click On the above image to view a large downloadable graphic.
The Light Weight Packer comes standard with a Blue printed Remington 700 action, to insure the best possible performance. This rifle comes standard, fitted with a custom three taper feather weight style Shilen Chrome-moly Match barrel and aluminum pillar bedded, Brown Precision Classic Style fiberglass stock fitted with a Pachmayer decelerator recoil pad. The receiver has been turned down and the bolt fluted to remove as much weight as possible. The metal is gray parkerized for a maintenance free non-glare finish.
SPECIFICATIONS
Weight................................................... 5 7/8 Pounds without scope
Barrel Length ..................................................................... 22 Inches
Length of pull ................................................................. 13.5 Inches
Color of Stock ........................................................ Black Textured
Rings and Bases ................................................................... Weaver
Trigger Pull .................................................... 3.5 Pounds Adjustable
Standard package less scope $2834.00 The following options and accessories are available by adding these prices to the standard package price.
Any standard color ................................................................... N/C
Bluing instead of parkerizing ....................................................... N/C
standard or magnum caliber (Most Ack Imp versions available)...... N/C
Custom length of pull ............................................................... N/C
Custom barrel length up to 24 inches .......................................... N/C
Score High Muzzle Brake ..................................................... $139.00
Thread protector for use without muzzle brake ...................$15.00
Shilen Match Barrel stainless ............................................... $80.00
Shilen Select Match Barrel stainless ..................................... $130.00
McMillan Remington Mountain Rifle Stock (add 8oz. to rifle) ...............$120.00
Jewell trigger with safety and bolt release ..................................$200.00
3-Position Safety (Winchester mod 70 style) ......................... $230.00
Sako Style Extractor ............................................................ $175.00
Williams iron sites with front ramp soldered on ....................$120.00
Click On the above image to view a large downloadable graphic.
The Score High Police Sniper Rifle comes standard with a Blue printed Remington 700 action, to insure the best possible performance. It comes fitted with a #7 contour Shilen Chrome-moly Match Barrel and H-S Precision PST03F Tactical Stock with fixed length of pull and fixed non-adjustable comb (above Picture is with H-S PST03C with with adjustable length of pull and adjustable comb). The metal is gray parkerized for a maintenance free non-glare finish.
SPECIFICATIONS
Weight.................................................................. 11 to 11.5 Pounds
Barrel Length ..................................................................... 24 Inches
Length of pull ................................................................ 13.5 Inches
Color of Stock ........................................................ Black Textured
Rings and Bases ............................................. Leupold Dual Dovetail
Trigger Pull ................................................... 3.5 Pounds Adjustable
Magazine Capacity ............................................................ 5 Rounds
Standard package less scope $1970.00 The following options and accessories are available by adding these prices to the standard package price.
Any standard caliber ................................................. ................ N/C
Custom barrel length up to 26 inches .......................................... N/C
Score High Muzzle Brake ..................................................... $139.00
Thread protector for use without the muzzle brake ............... $15.00
Shilen Match Barrel stainless ................................................ $80.00
Shilen Select Match Barrel stainless ..................................... $130.00
Jewell trigger with safety and bolt stop ................................... $200.00
Titanium Firing Pin with heavy spring ...................................... $70.85
H-S Precision PST03C Tactical Stock with adj. length of pull and adj. comb .........................$270.00 (pictured above)
H-S Precision PST25C Tactical Vertical Grip style wit adj. length of pull and adj. comb .........................$350.00
Flute barrel of choice ........................................................... $250.00
3-Position Safety (Winchester mod 70 style) ......................... $230.00
Sako Style Extractor ............................................................ $175.00
The Heavy Varmint Rifle comes standard with a Blue printed Remington 700 action, to insure the best possible performance. It comes fitted with a #7 contour Shilen Chrome-moly Match Barrel and aluminum pillar bedded, McMillan Remington Varmint Style Stock. The metal is gray parkerized for a maintenance free non-glare finish.
SPECIFICATIONS
Weight................................................................. 11 to 11.5 Pounds
Barrel Length ..................................................................... 24 Inches
Length of pull ................................................................. 13.5 Inches
Color of Stock ........................................................ Black Textured
Rings and Bases ............................................. Leupold Dual Dovetail
Trigger Pull .................................................... 3.5 Pounds Adjustable
Standard package less scope $2315.00 The following options and accessories are available by adding these prices to the standard package price.
Any standard color ................................................................... N/C
Custom polyurethane high gloss metallic automotive Candy Color paint........................................................................................... $400.00
Any standard caliber to fit short action Remington 700 ................ N/C
Custom length of pull ................................................................. N/C
Custom barrel length up to 27 inches ........................................... N/C
Score High Muzzle Brake ..................................................... $139.00
Thread protector for use without muzzle brake ...................... $15.00
Shilen Match Barrel stainless ............................................... $80.00
Shilen Select Match Barrel stainless ..................................... $130.00
Jewell trigger with safety and bolt release ..................................$200.00
Bi-Metal Light Weight Firing Pin with heavy spring .................. $70.85
Walnut or Laminated Thumbhole Varminter Stock ................ $640.00
Brown Precision Thumb Hole Varmint stock .......................... $75.00
Brown Precision Silhouette Stock .............................................. N/C (Pictured above)
McMillan Standard Silhouette Rifle Stock .................................. N/C
McMillan Thumbhole Silhouette Rifle Stock ...............................$75.00
McMillan Benchrest / Varmint Stock, light, heavy &sporter ........ N/C
McMillan Three Way Adjustable butt plate assembly ............. $150.00
Flute barrel of choice ........................................................... $250.00 (Pictured above)
3-Position Safety (Winchester mod 70 style) ........................ $230.00
Sako Style Extractor ............................................................ $175.00
Good accuracy greatly depends on having a quality barrel properly installed. Great pains are taken to insure that you get the best possible accuracy from your selected barrel. To start with, all barrel work is done in a four jaw independent chuck, indicated in to within .0001”. Our reamers are fitted with a complete size range removable pilots. Only a perfect pilot to bore fit guarantees a concentric chatter free throat. The crown of each barrel is cut with a razor sharp tool then polished and honed for the perfect bullet release We have tight neck reamers along with short and standard length throats for almost all common target cartridges and we are getting more all the time.
We install barrels from a variety of manufactures from both pre-contoured blanks and unturned blanks. These prices only include polishing and finishing of the new barrel. We can refinish the entire firearm for an additional fee. This service is priced on request. We can obtain barrels from any manufacturer if you have a favorite that’s not mentioned below.
Standard Contoured Barrels installed on your action.
| Bartlein Stainless Steel Match grade barrel |
$655.00 |
| Brux Chrome Moly Match Barrel |
$620.00 |
| Brux Stainless Steel Match grade barrel |
$655.00 |
| Krieger Chrome Moly Match Grade Barrel |
$620.00 |
| Krieger Stainless Match Grade Barrel | $655.00 |
| Shilen Match Grade Chrome Moly |
$520.00 |
| Shilen Match Grade Stainless Steel |
$599.00 |
| Shilen Select Match Stainless Steel (Shilen's best barrel) |
$654.00 |
| Hart Stainless Steel Match Grade Barrel | $655.00 |
Custom and non-standard options, add to the above prices.
| Any non-standard round contour |
$175.00 |
| Flute any round barrel, maximum barrel length is 28 inches and maximum flute length is 19 inches.( Click here for details) |
$250.00 |
| Octagon with a full solid rib |
$300.00 |
| Half round half octagon with a quarter rib milled to except express sites (sites not included) |
$900.00 |
| Half round half octagon with full rib milled to except express sites (sites not included) |
$1250.00 |
Miscellaneous barreling services available.
| Blue print Remington 700 action | $225.00 |
|
| Barrel cryo treatment, includes shipping to and from cryo center, removal and reinstallation. | $115.00 |
|
| Cut and crown |
$65.00 |
|
| Special throating on a new barrel that we install, add | $45.00 |
|
| Special throating on customers existing barrel. This includes removal and reinstallation | $80.00 |
|
| Change cartridge where no thread alterations are required | $135.00 |
|
| Change cartridge including cutting new threads, requiring setting back barrel |
without indexing for sites |
$180.00 |
|
with indexing for sites |
$225.00 |
|
RIFLE WORK
| Fire lap barrel to enhance accuracy on standard calibers. Customer supplies 100 Primed cases and bullets |
$140.00 |
| Remove copper from badly fouled bore, includes electrolytically cleaning bore with JB-Bore polish |
$135.00 |
| Mounting scopes including bore siteing |
$22.50 |
Mount scope including line boring rings to eliminate stress |
$55.00 |
| Free float rifle barrels on average |
$45.00 |
| Drill and tap most rifles for scopes, including mounting and bore siteing |
$75.00 |
| Adjust adjustable trigger. |
$45.00 |
Lighten and remove creep from non adjustable trigger |
$65.00 |
| Install Williams iron sites (sites and labor) |
$120.00 |
| Cut and crown rifle barrel |
$65.00 |
| Mill dovetail in barrel for sites |
$45.00 |
| Mill grooves in receiver to accept 22 tip off rings |
$65.00 |
| Open rails and rework claw extractors to feed magnum ammo |
$65.00 |
|
Open bolt face on average |
$35.00 |
| Sako style extractor installed on Remington bolts |
$175.00 |
| 3-Position safety installed on most commercial and military surplus actions |
$230.00 |
| Flute and lighten Remington 700 bolt |
$85.00 |
The best accuracy possible is everybody's goal. Our 29-point diagnostic is the straightest line to that goal. Many times the diagnostic process itself drastically enhances accuracy.. Each diagnostic begins by first measuring all critical tolerances such as the bore diameter, groove diameter and throat diameter and length. With the use of optical inspection equipment the condition of the bore’s surface is checked along with the condition of the barrels crown. Also important is the consistency of the bore diameter and consistency of the twist. Chamber casting will open windows onto any flaws or irregularities in the chamber and throat. After that the rifle is carefully disassembled. As the rifle is disassembled we look for anything that might impair accuracy, such as poorly torqued scope mount or guard screws or stress torqued into an assembly. Vibrations are the result of a lack of rigidity or from stress resulting from the poor relationship of a rifle's different components or subassemblies. Through the use of dial indicators these problems are identified and solutions can be recommended. Many times these problems are reduced or eliminated during reassembling. Some problems are not as easy. Poor chamber work can be devastating to good accuracy. The best match grade barrel and pillar bedded stock will never yield good accuracy if your chamber has a crooked, or over size throat. Each of the 29 points are checked or measured then given a grade of 1 to 5, 5 being perfect.
The 29 Point Check List
|
1. The crown |
16. Neck diameter |
| 2. Magazine box position | 17. Neck concentricity |
| 3. Bolt handle binding on the stock or receiver | 18. Throat diameter |
| 4. Scope tracking | 19. Throat concentricity |
| 5. Scope adjustment range | 20. Throat length |
| 6.Quality and condition of scope mounts | 21. Throat erosion |
| 7. Proper scope mount torque | 22. Recoil lug engagement |
| 8. Scope mount stress | 23. Proper barrel twist rate |
| 9. Trigger guard screw torque | 24. Consistent twist rate |
| 10. Trigger guard screw firmness | 25. Proper groove diameter |
| 11. Action bedding flex & stress | 26. Proper bore diameter |
| 12. Barrel channel, proper fit | 27. consistent bore and groove diameter |
| 13. Headspace | 28. Trigger pull, weight and creep |
| 14. Chamber finish | 29. Effects from firing pin fall |
| 15. Chamber concentricity |
Accuracy depends on Shot-to-shot consistency. A great deal of a rifles ability to achieve this consistency is dictated by the relationship between the barreled action and the stock. During the firing process, a great deal of recoil or kick is created which tends to shift the barrel and action in the stock. This change dramatically affects the rifles ability to achieve shot-to-shot repeatability. Nothing short of a good epoxy bedded stock can insure that your rifle is attaining its potential accuracy.
Pillar bed, (recommended for live varmint and benchrest rifles) refers to the process of epoxy bedding an aluminum pillar sleeve in the stock around the guard screw hole. This allows the guard screws to draw the action and the trigger guard together against a solid aluminum pillar sleeve.
Epoxy bed action and float barrel. (recommended for most hunting rifles) This refers to epoxy bedding the rifle’s action, chamber area of the barrel and trigger guard. The guard screw holes are bored over size and filled with high compressive strength bedding epoxy. This creates a epoxy pillar within the stock. The barrel is free floated.
Epoxy bed entire rifle. This refers to epoxy bedding the rifle’s action, barrel and trigger guard. The guard screw holes are bored over size and filled with high compressive strength bedding epoxy. This creates a epoxy pillar within the stock.
|
Pillar bed Remington 700 or Winchester 70
with |
$175.00 |
| Epoxy bed complete gun, action, barrel and trigger guard |
$175.00 |
|
Epoxy bed action, chamber area of barrel and free float barrel. |
$140.00 |
CUSTOM STOCKS INSTALLED. We do stock work in high-grade wood and wood laminates as well as synthetic materials.
| Custom wood stock prices vary do to design, grade of wood and checkering pattern, prices start at |
$1485.00 |
| Brown Precision stocks custom installed on your rifle | $699.95 |
| McMillan stocks custom installed on your rifle | $812.00 |
| McMillan Drop in synthetic stock installed on your rifle with the action bedded and the barrel free floated | $745.65 |
| H-S Precision Pro-Series Sporter synthetic stocks installed on your rifle, prices start at | $440.00 |
Copyright © 1999 [Score High Gunsmithing]. All rights reserved.
Revised: June 29, 2009
Practical
Sporter
Lightweight
Packer
Police
Sniper
Heavy Varmint
