Remington 700 Accurizing  Service.

Level 1, The level 1 service entails improving upon almost every aspect of your rifle short of re-machining the barrel and receiver.  This service make the most dramatic change and usually enables your rifle to shoot sub MOA Groups.  Because of the different stock bedding techniques the level 1 service is broken down in to level 1a and 1b

Level 1a,    $295.00
For Rifles with an aluminum stock bedding block such as
Sendero or H-S Precision.

1. Barrel diagnostic.
2.
epoxy bed the aluminum bedding block and float barrel
3. Re-crown the barrel with an 11 degree counter-bore style crown.
4. Trigger tune.
5. Line bore Rings and bases and mount scope.
6. Lap bolt Lugs

Level 1b,    $335.00
For Rifles with wood or synthetic stocks that can be aluminum pillar bedded.

1. Barrel diagnostic
2. epoxy bed stock with aluminum pillars and float barrel
3. Re-crown the barrel with an 11 degree counter-bore style crown.
4. Trigger tune.
5. Line bore Rings and bases and mount scope.
6. Lap bolt Lugs



Level 2  Gives you that last bit of accuracy that can only be achieved with a match quality chamber and a perfect receiver barrel fit.  The level 2 many times raises your rifle’s accuracy to that of a full blown custom rifle depending on barrel quality.

   Level 2a $695

1. Everything in Level 1a
2.
Blue print receiver
3. Remove original barrel thread extension.  Rethread barrel to precisely fit receiver.
4. Re-cut chamber to match quality and polish.

Level 2b $735

1. Everything in Level 1b
2.
Blue print receiver
3. Remove original barrel thread extension.  Rethread barrel to precisely fit receiver.
4. Re-cut chamber to match quality and polish.



Options

1. Drill and re-tap Scope base holes to 8x40 for better alignment and more strength.
2. Tactical Bolt handle
    Badger knob
    Holland’s
    ECT
    Taylor
3. Leupold Dual Dove tail Rings and bases
4. Badger 20 Minutes tapered rings and bases.
    One piece
    Two piece
5.

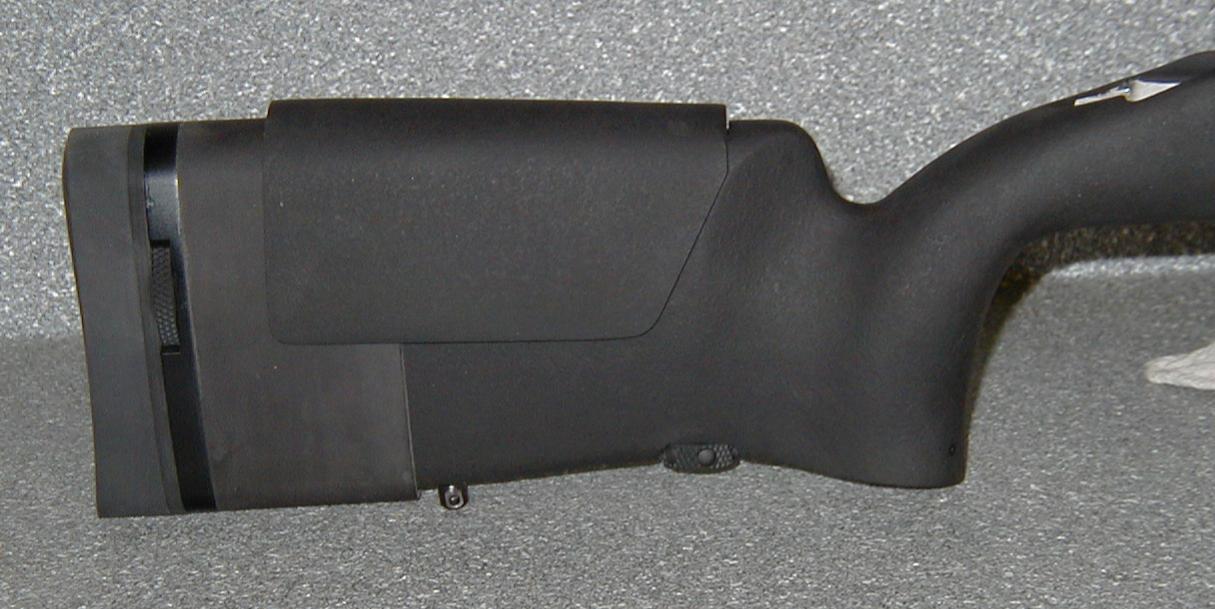

H-S Precision PST-25/26 stock vertical grip with adjustable Length of pull and adjustable comb.
6.
H-S Precision PST03C stock vertical grip with adjustable Length of pull and adjustable comb.



The Remington 700 is the work horse of today’s rifleman.  It was was action of choice for the Marine M40 Sniper Rifle for many good reasons.  It is strong, rugged reliable and most of all, naturally accurate.  It is still the action of choice as a foundation for today’s most accurate rifles.  Remington Arms does a fine job producing these rifles but they can only do so much and still produce an affordable rifle.  Just like everything else, the devil is in the details and this is where we shine.  As a professional gunsmith since 1979, I have seen fads come and go.  I have seen what works and what does not.  I have looked at countless rifles from the stand point of “What should be done to this rifle to make it more accurate, more reliable and more in tune for the specific task at hand”



Depending on your needs we offer 2 levels of accurizing services to Remington 700 rifles.  All Remington 700s fall into one of two categories light/sporter or heavy/target.  The light/sporter models are confined to only level 1 (unless the barrel is replaced).  Because the taper of the  light/sporter barrel starts immediately at the recoil lug and tapers quickly to a sporter weight there is not enough barrel material to remove all of the original threads and cut new ones.  The heavy/target models such as, but not limited to, the Sendero, VLS, VSF, or BDL Varmint are suited to both levels of our accurizing services.



RIFLE WORK

Misc. Services

Fire lap barrel to enhance accuracy on standard calibers. Customer supplies 100 Primed cases and bullets

$140.00

Remove copper from badly fouled bore, includes electrolytically cleaning bore with JB-Bore polish

$135.00

Mounting scopes including bore sighting

$27.50

Precision scope mounting  including line boring rings to eliminate stress

$65.00

Free float rifle barrels on average

$45.00

Drill and tap most rifles for scopes, including mounting and bore sighting

$75.00

Adjust adjustable trigger.

$45.00

Lighten and remove creep from non adjustable trigger

$65.00

Install Williams iron sights (sights and labor)

$120.00

Cut and crown rifle barrel

$65.00

Mill dovetail in barrel for sights

$45.00

Mill grooves in receiver to accept 22 tip off rings

$65.00

Open rails and rework claw extractors to feed magnum ammo

$65.00

Open bolt face on average

$35.00

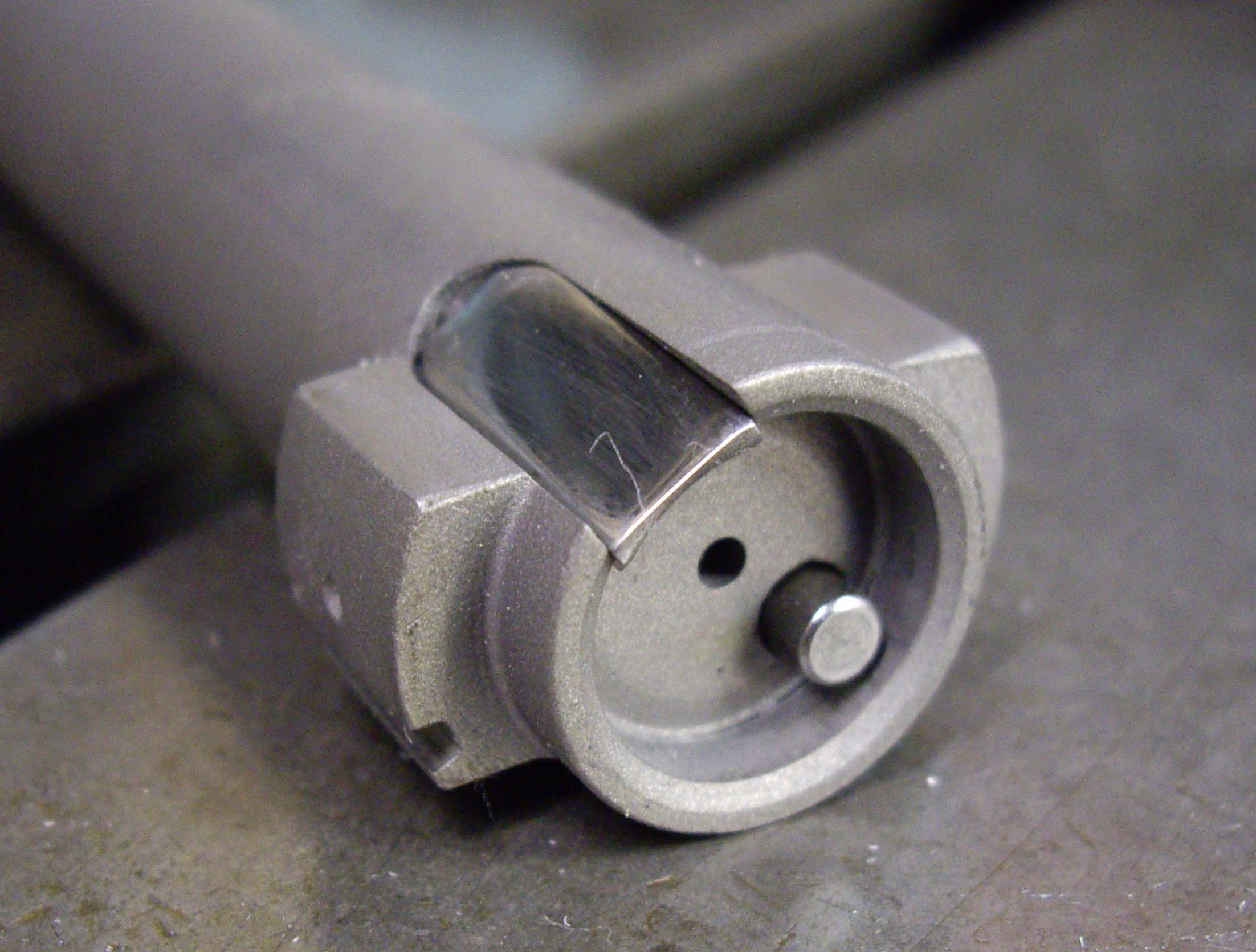

Sako style extractor installed on Remington bolts

$175.00

3-Position safety installed on most commercial and military surplus actions

$230.00

Flute and lighten Remington 700 bolt

$85.00



    Accuracy Diagnostic    $50.00

The best accuracy possible is everybody's goal. Our 29-point diagnostic is the straightest line to that goal. Many times the diagnostic process itself drastically enhances accuracy.. Each diagnostic begins by first measuring all critical tolerances such as the bore diameter, groove diameter and throat diameter and length.  With the use of optical inspection equipment the condition of the bore’s surface is checked along with the condition of the barrels crown.  Also important is the consistency of the bore diameter and consistency of the twist.  Chamber casting will open windows onto any flaws or irregularities in the chamber and throat.  After that the rifle is carefully disassembled.  As the rifle is disassembled we look for anything that might impair accuracy, such as poorly torqued scope mount or guard screws or stress torqued into an assembly.  Vibrations are the result of a lack of rigidity or from stress resulting from the poor relationship of a rifle's different components or subassemblies. Through the use of dial indicators these problems are identified and solutions can be recommended. Many times these problems are reduced or eliminated during reassembling.  Some problems are not as easy. Poor chamber work can be devastating to good accuracy. The best match grade barrel and pillar bedded stock will never yield good accuracy if your chamber has a crooked, or over size throat.  Each of the 29 points are checked or measured then given a grade of 1 to 5, 5 being perfect.

 The 29 Point Check List

1. The crown

16. Neck diameter
2. Magazine box position 17. Neck concentricity
3. Bolt handle binding on the stock or receiver 18. Throat diameter
4. Scope tracking 19. Throat concentricity
5. Scope adjustment range 20. Throat length
6.Quality and condition of scope mounts 21. Throat erosion
7. Proper scope mount torque 22. Recoil lug engagement
8. Scope mount stress 23. Proper barrel twist rate
9. Trigger guard screw torque 24. Consistent twist rate
10. Trigger guard screw firmness 25. Proper groove diameter
11. Action bedding flex & stress 26. Proper bore diameter
12. Barrel channel, proper fit 27. consistent bore and groove diameter
13. Headspace 28. Trigger pull, weight and creep
14. Chamber finish 29. Effects from firing pin fall
15. Chamber concentricity
